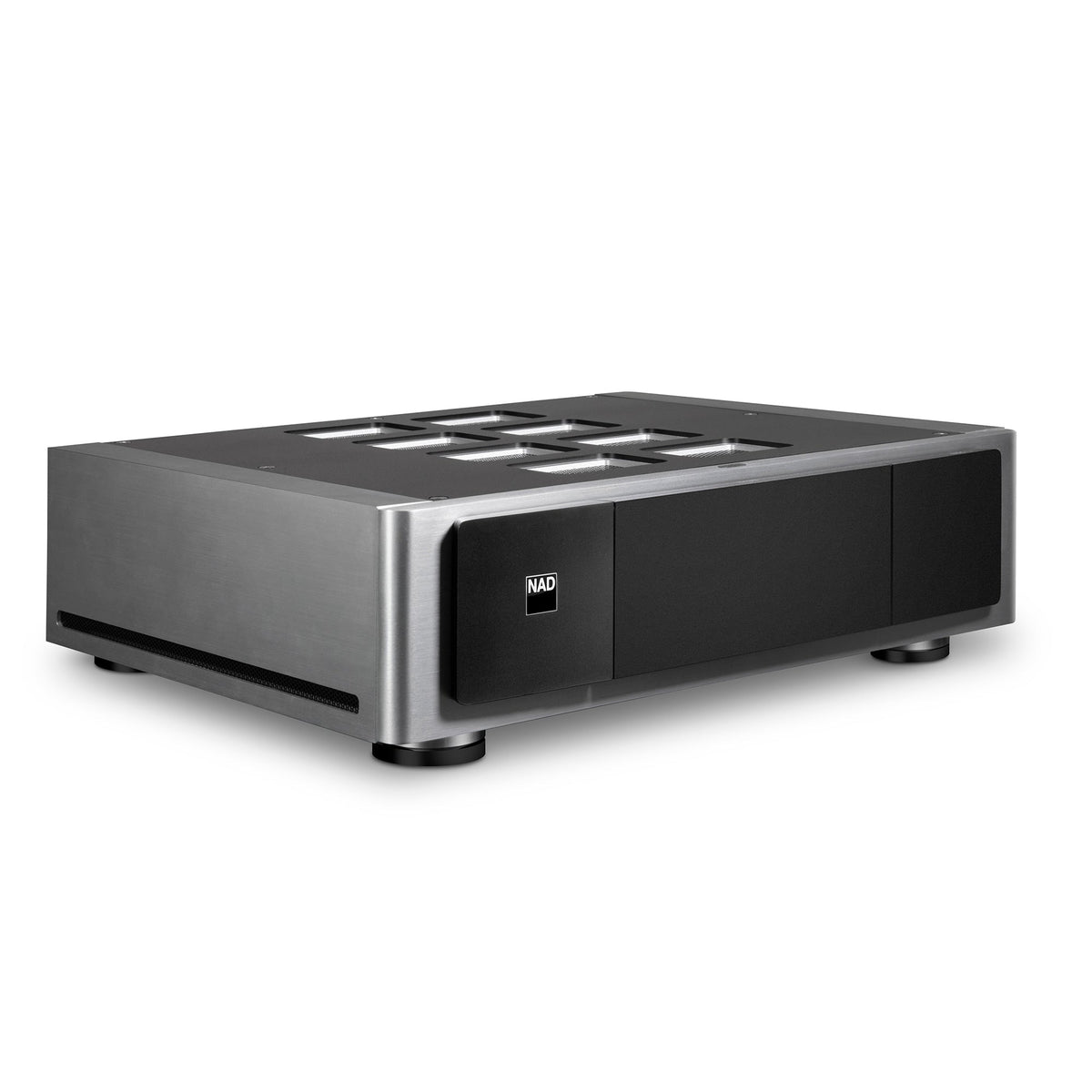

NAD M23 V2 Stereo Power Amplifier

Name: NAD M23 V2 Stereo Power Amplifier
Brand: NAD
Price: 5999.00 CAD
Availability: InStock

$5,999.00 CAD

The NAD M23 V2 is a stereo power amplifier using second-generation Purifi Eigentakt modules and NAD's HybridDigital architecture. It delivers 200 watts per channel into 8 ohms and 380 watts per channel into 4 ohms, with a bridged mode rated at more than 700 watts into 8 ohms.

Auto-sensing balanced XLR and single-ended RCA inputs are joined by a three-position gain control and an intelligent 12-volt trigger with selectable delay. Its alloy chassis and efficient switch-mode power supply are designed for low noise, high current delivery and controlled heat output.

Specifications

Continuous power: 200 W per channel into 8 ohms; 380 W per channel into 4 ohms
Frequency response: 20 Hz–20 kHz (±0.06 dB, stereo; ±0.054 dB, bridged); −3 dB at 60 kHz
THD (20 Hz–20 kHz): <0.00069% via XLR; <0.0013% via RCA; output level not specified in the manufacturer’s product table
Signal-to-noise ratio: >101.7 dB at 1 W into 8 ohms
Bridged mono power: More than 700 W into 8 ohms
Component type: Stereo power amplifier
Amplification: Second-generation Purifi Eigentakt
Inputs: Balanced XLR and single-ended RCA with auto sensing
Gain: Three selectable positions
Control: Intelligent 12 V trigger with delay
Product dimensions (W x H x D): awaiting confirmation; manufacturer and earlier documentation differ on overall depth
Product weight: 9.71 kg
Shipping weight: 17.51 kg
