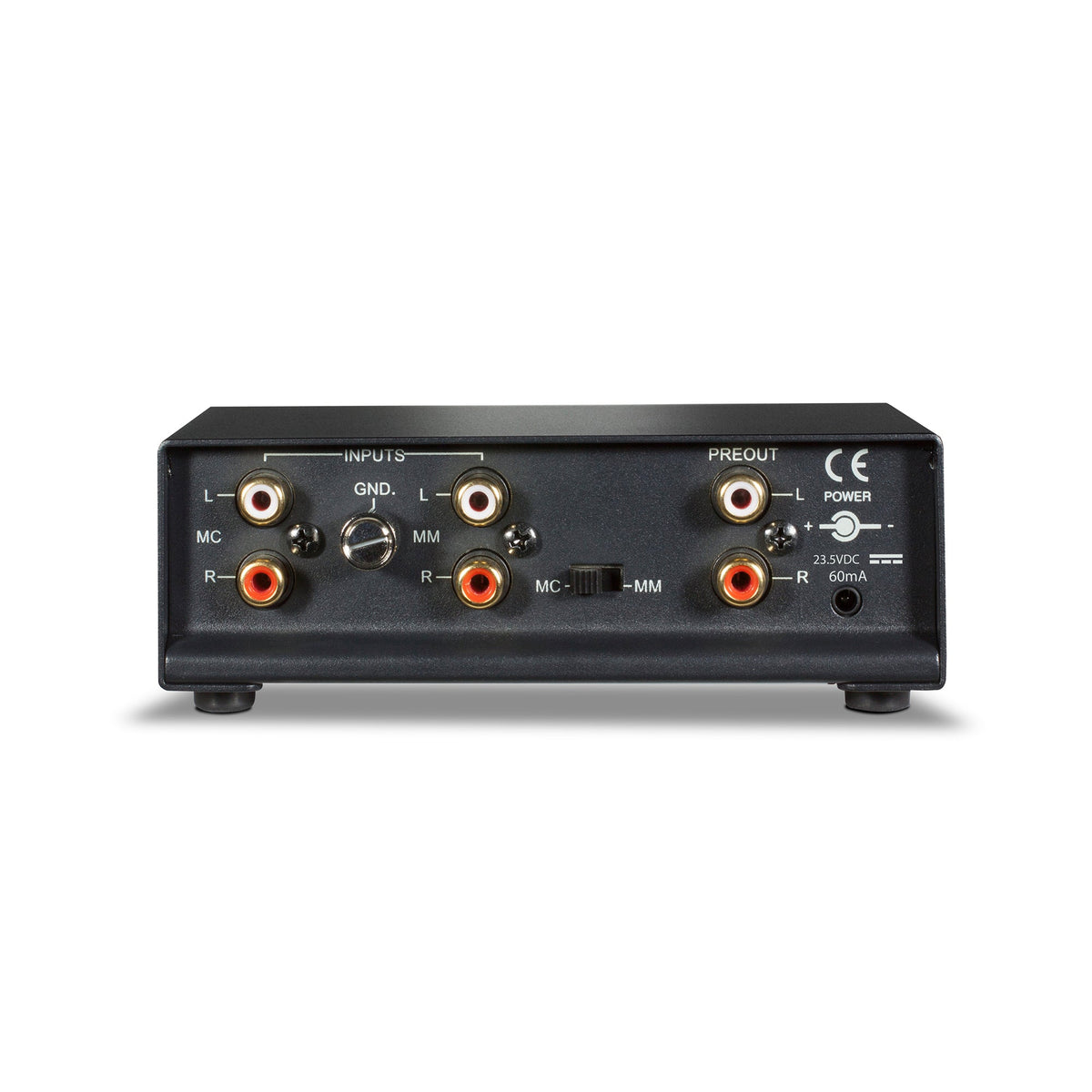

NAD PP 2e Phono Preamplifier - rear view
NAD

NAD PP 2e Phono Preamplifier

Sale price$349.00 CAD

The NAD PP 2e is a compact phono preamplifier that provides the gain and RIAA equalization required to connect a turntable to a conventional line-level input. Separate moving-magnet and moving-coil inputs accommodate a wider range of cartridges, selected using the rear-panel MM/MC switch.

Its low-noise, wide-band circuit is powered by an external 24-volt supply, helping keep the power source away from the sensitive phono signal. Gold-plated input and output sockets provide durable connections, and an automatic power-down function reduces energy use when no signal is present. The PP 2e is intended for amplifiers or powered speakers without a suitable built-in phono stage.

Specifications
  • Cartridge support: Moving magnet and moving coil
  • Inputs: Separate MM and MC, selected with rear-panel switch
  • MM input loading: 47 kΩ / 200 pF
  • MC input loading: 100 Ω / 180 pF
  • MM input sensitivity: 2.5 mV for 200 mV output
  • MC input sensitivity: 0.3 mV for 200 mV output
  • SNR, A-weighted with cartridge connected: MM 80 dB; MC 78 dB
  • THD: Less than 0.03%, 20 Hz–20 kHz
  • RIAA response accuracy: ±0.3 dB
  • Output: Line level; 100 Ω output impedance
  • Maximum output: 5.3 V
  • Automatic power down: Included
  • Dimensions excluding power supply (W × H × D): 135 × 49 × 72 mm
