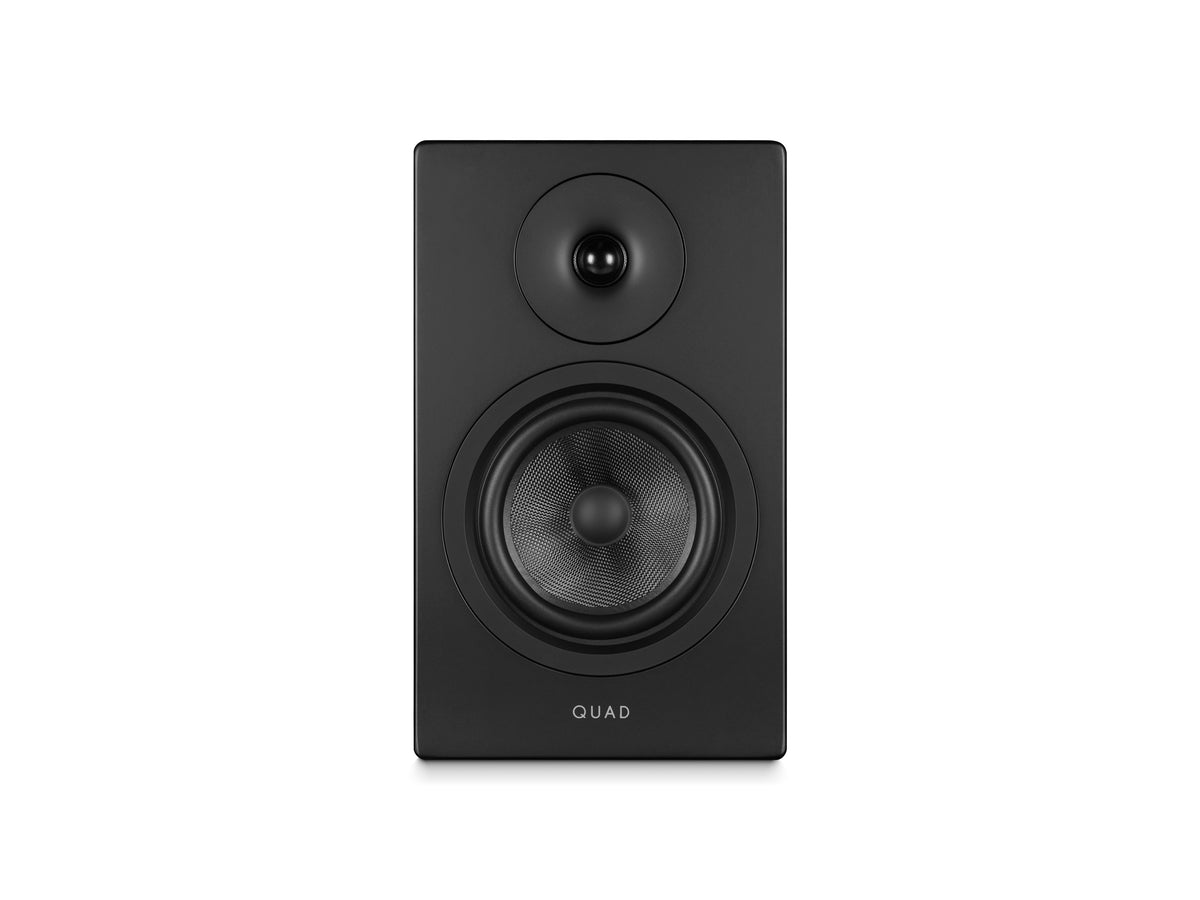

QUAD Elegan 1

$1,495.00 CAD

The QUAD Elegan 1 is a compact, two-way standmount speaker with a 165 mm woven Kevlar bass/midrange driver and a 25 mm soft-dome tweeter. Its bass-reflex cabinet is available in real wood Walnut veneer or Matte Black.

Recommended amplifier power is 30–150 watts, with 86 dB sensitivity and an 8-ohm-compatible impedance. Frequency response is specified at 56 Hz–24 kHz (±3 dB), with bass extension to 44 Hz at −6 dB.

Specifications

Design: 2-way standmount; bass-reflex enclosure
Bass driver: 165 mm woven-Kevlar cone
Treble driver: 25 mm soft dome
Frequency response (±3 dB): 56 Hz–24 kHz
Bass extension (−6 dB): 44 Hz
Sensitivity (2.83 V / 1 m): 86 dB
Impedance: 8 Ω compatible (manufacturer designation)
Minimum impedance: 4.3 Ω
Recommended amplifier power: 30–150 W
Crossover frequency: 2.9 kHz
Dimensions (W × H × D): 220 × 365 × 333 mm; height includes plinth, depth includes grille and terminals
Net weight: 8.9 kg per speaker
Finishes: Real wood Walnut veneer; Matte Black

Finish:

Walnut Matte Black

Variant

QUAD products are only available for purchase in store. Get in touch for availability.

Contact us to purchase
