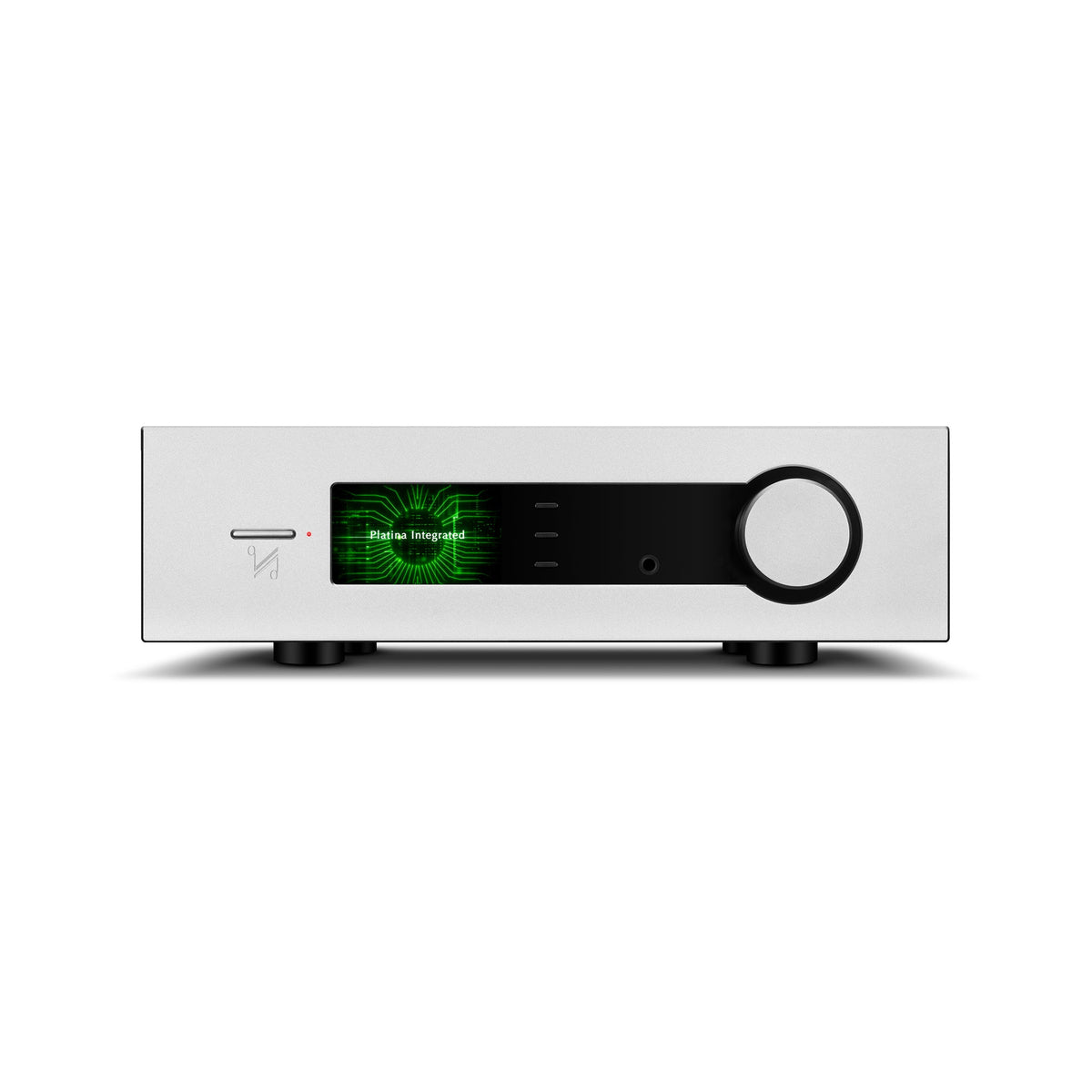

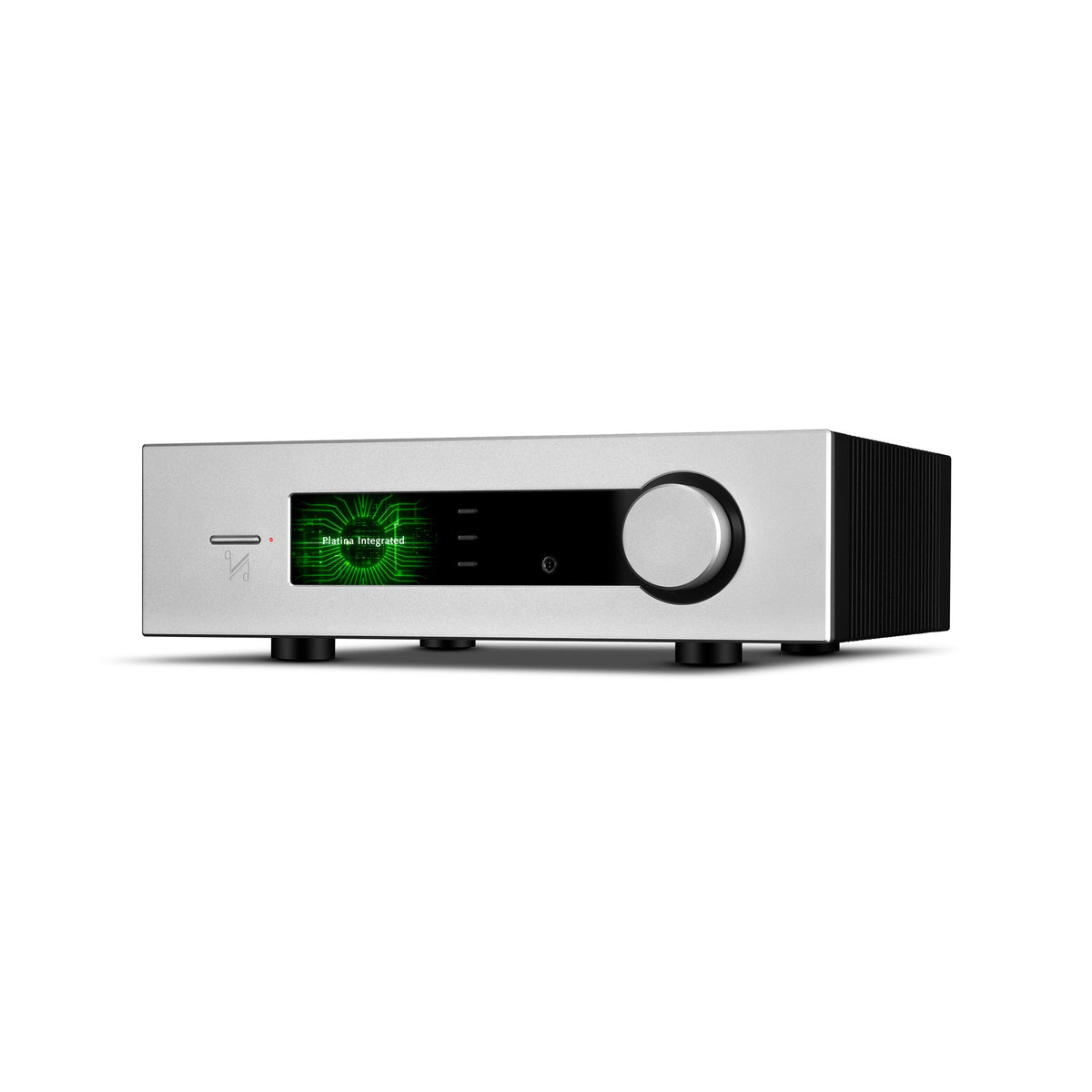

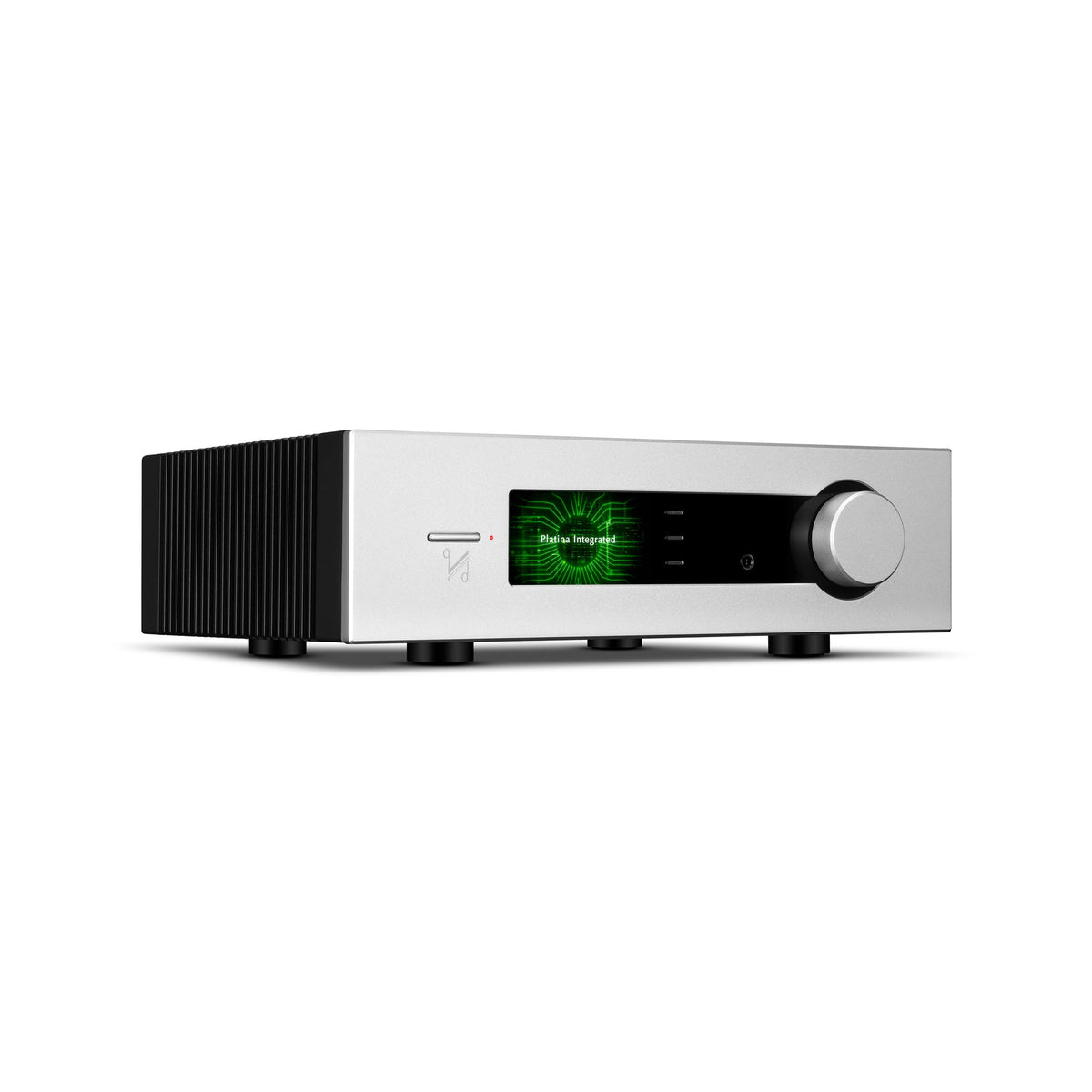

QUAD Platina Integrated Amplifier

$7,995.00 CAD

The QUAD Platina Integrated is a dual-mono Class AB integrated amplifier delivering 200 watts per channel into 8 ohms and 310 watts per channel into 4 ohms. A 630 VA toroidal transformer and separate 44,000 microfarad filter capacity for each channel support its high-current output stage.

Its digital section uses an ESS ES9038PRO DAC with optical, coaxial, USB and HDMI ARC inputs, supporting PCM up to 768 kHz and DSD512 over USB. Analogue connectivity includes RCA and balanced XLR inputs plus a switchable moving-magnet/moving-coil phono stage with three gain settings. RCA and XLR pre-outs, digital outputs, a headphone amplifier and a 4.3-inch colour display are also included.

Specifications

Power output: 200 W per channel into 8 ohms; 310 W per channel into 4 ohms, at THD <1%
Frequency response (power amplifier): 20 Hz–20 kHz (±0.3 dB)
THD (power amplifier): <0.0008% at 1 kHz, 100 W into 8 ohms
Signal-to-noise ratio (power amplifier): >112 dB, A-weighted
Type: Dual-mono Class AB integrated amplifier
DAC: ESS ES9038PRO
Digital support: PCM to 768 kHz; DSD512 over USB
Inputs include: RCA, balanced XLR, MM/MC phono, optical, coaxial, USB-C and HDMI ARC

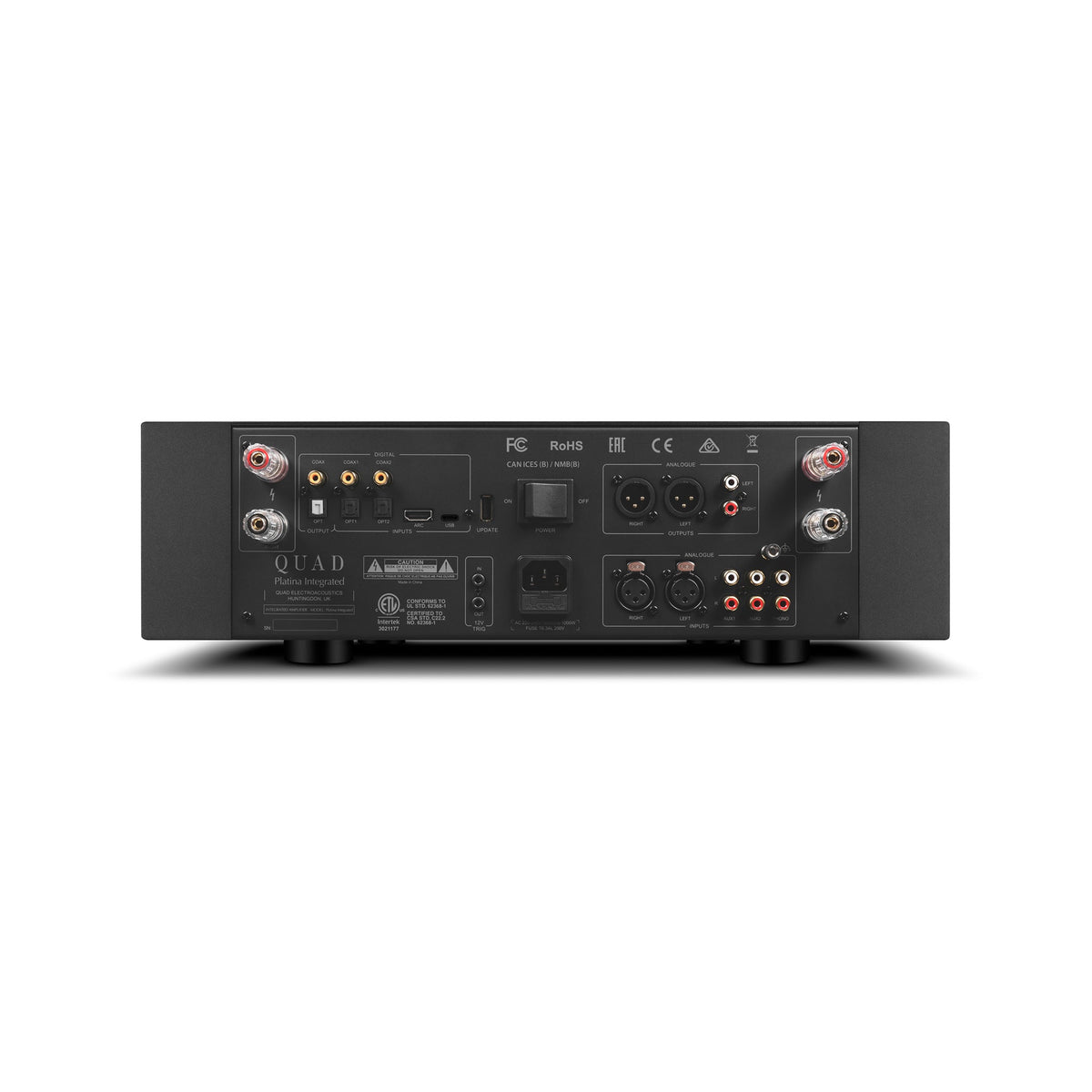

Outputs include: speakers, RCA and XLR pre-out, optical, coaxial, headphone and 12 V trigger
Dimensions (W x H x D): 445 x 134.5 x 348 mm
Net weight: 17.1 kg
Gross weight: 19.3 kg

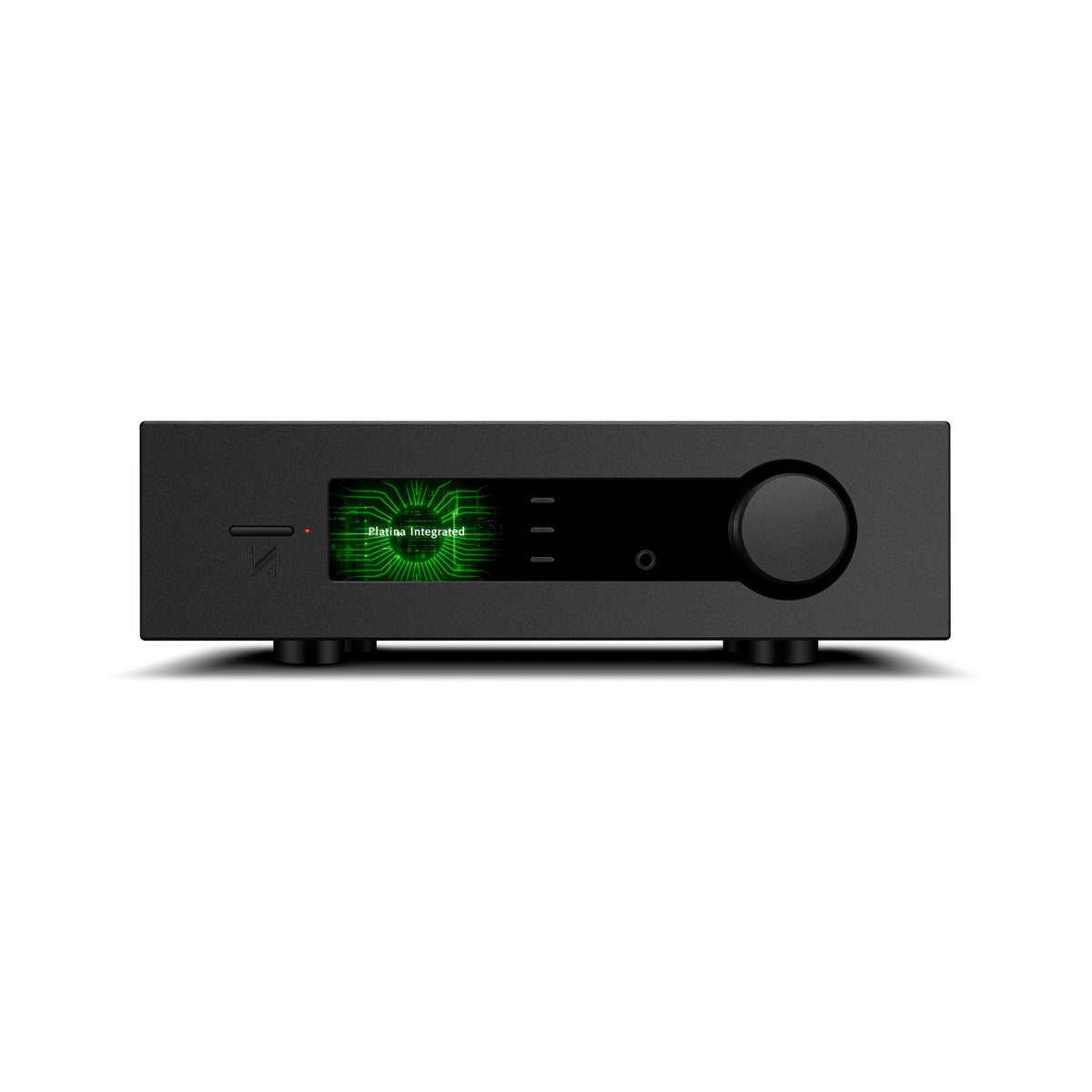

Finish: Select Black or Silver

Finish:

Black Silver

Variant

QUAD products are only available for purchase in store. Get in touch for availability.

Contact us to purchase
