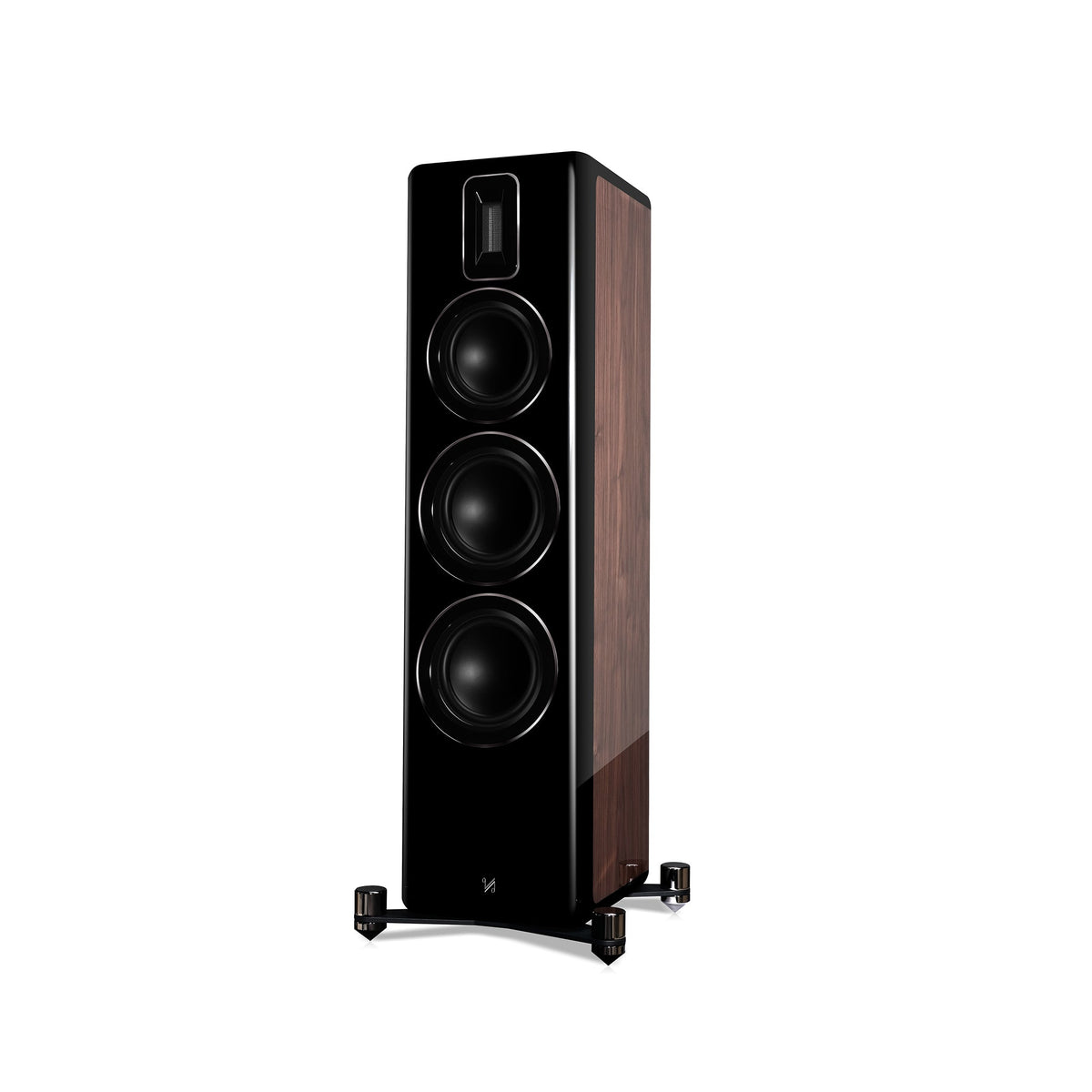

QUAD Revela 2 - Piano Walnut front view

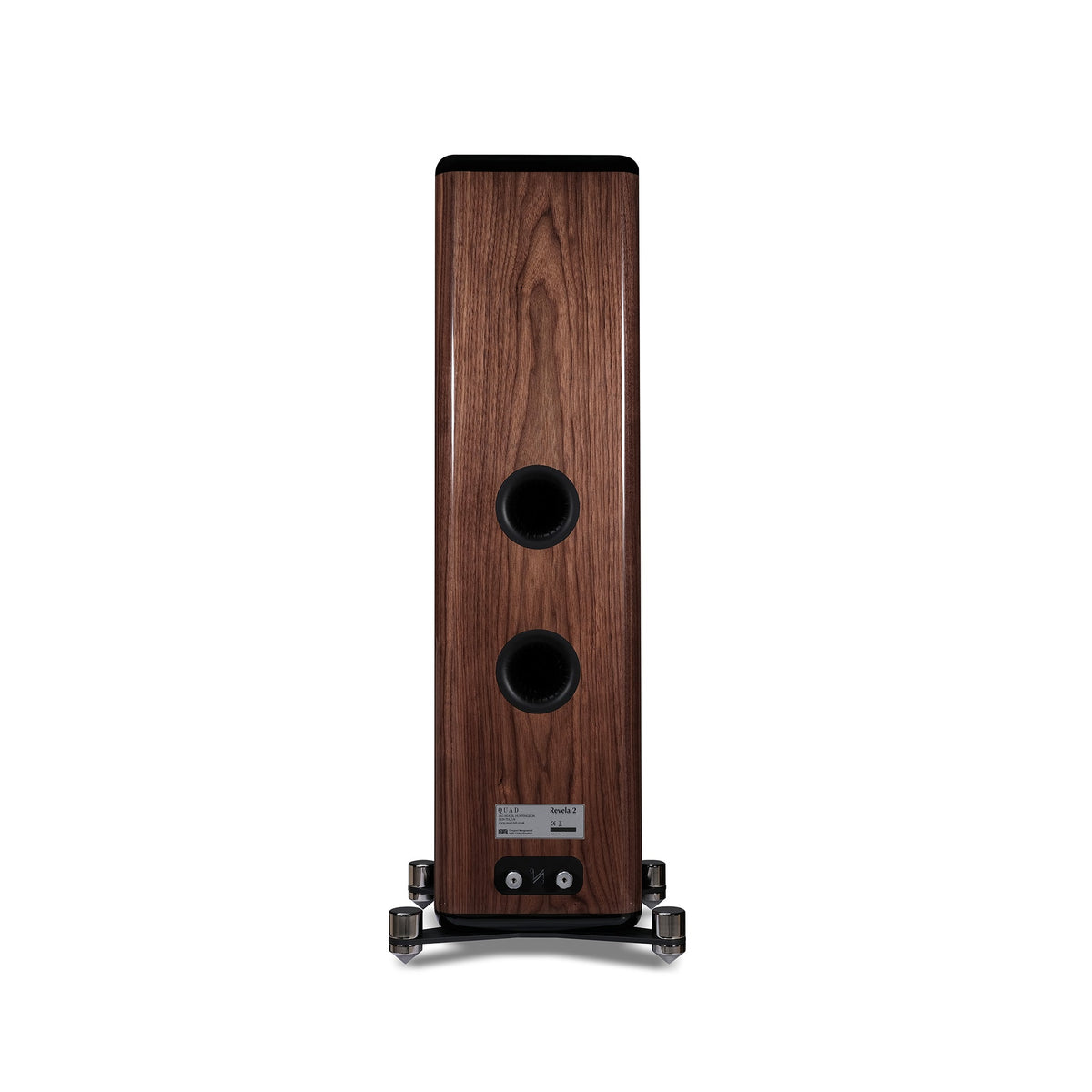

QUAD Revela 2 - Piano Walnut rear view

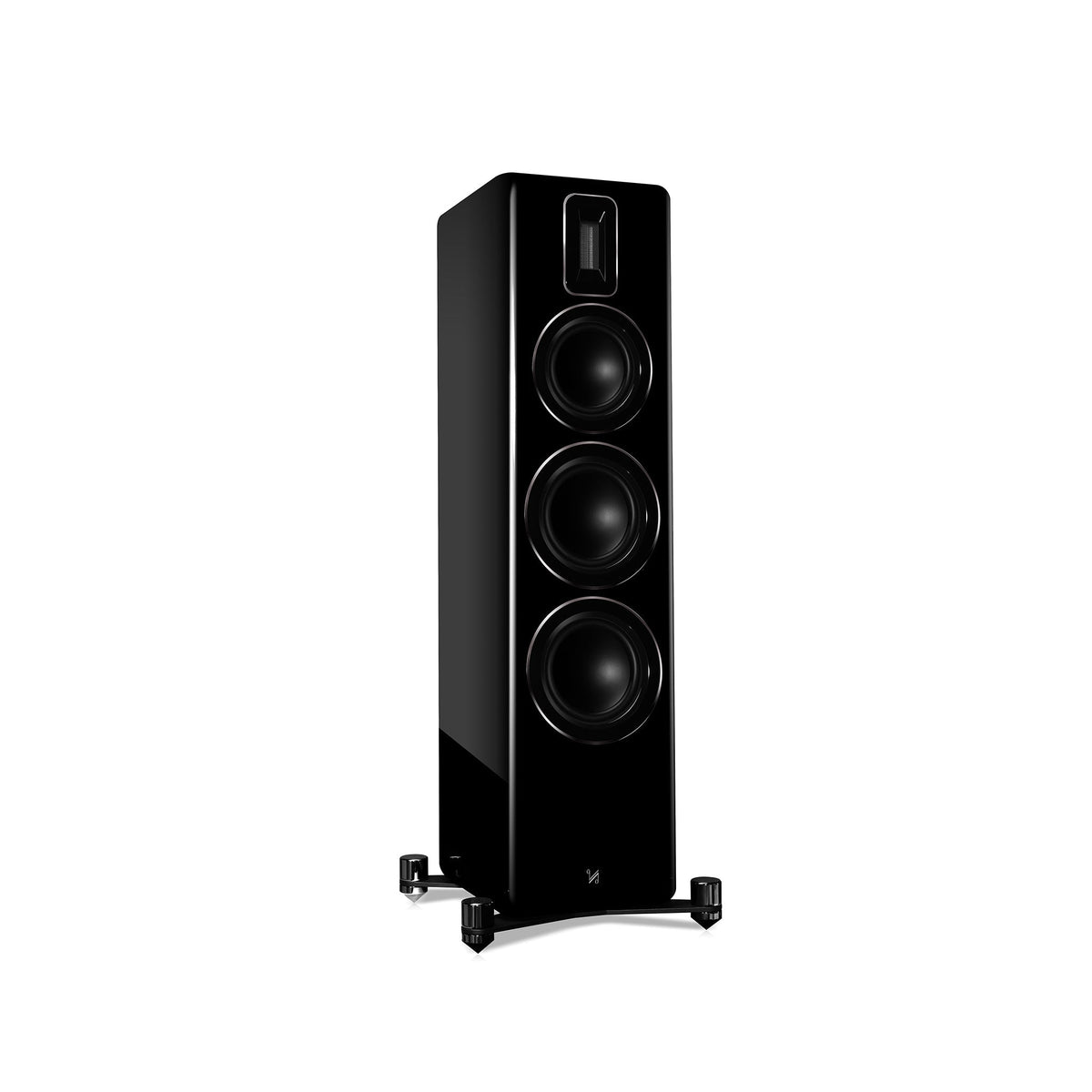

QUAD Revela 2 - Piano Black three-quarter view

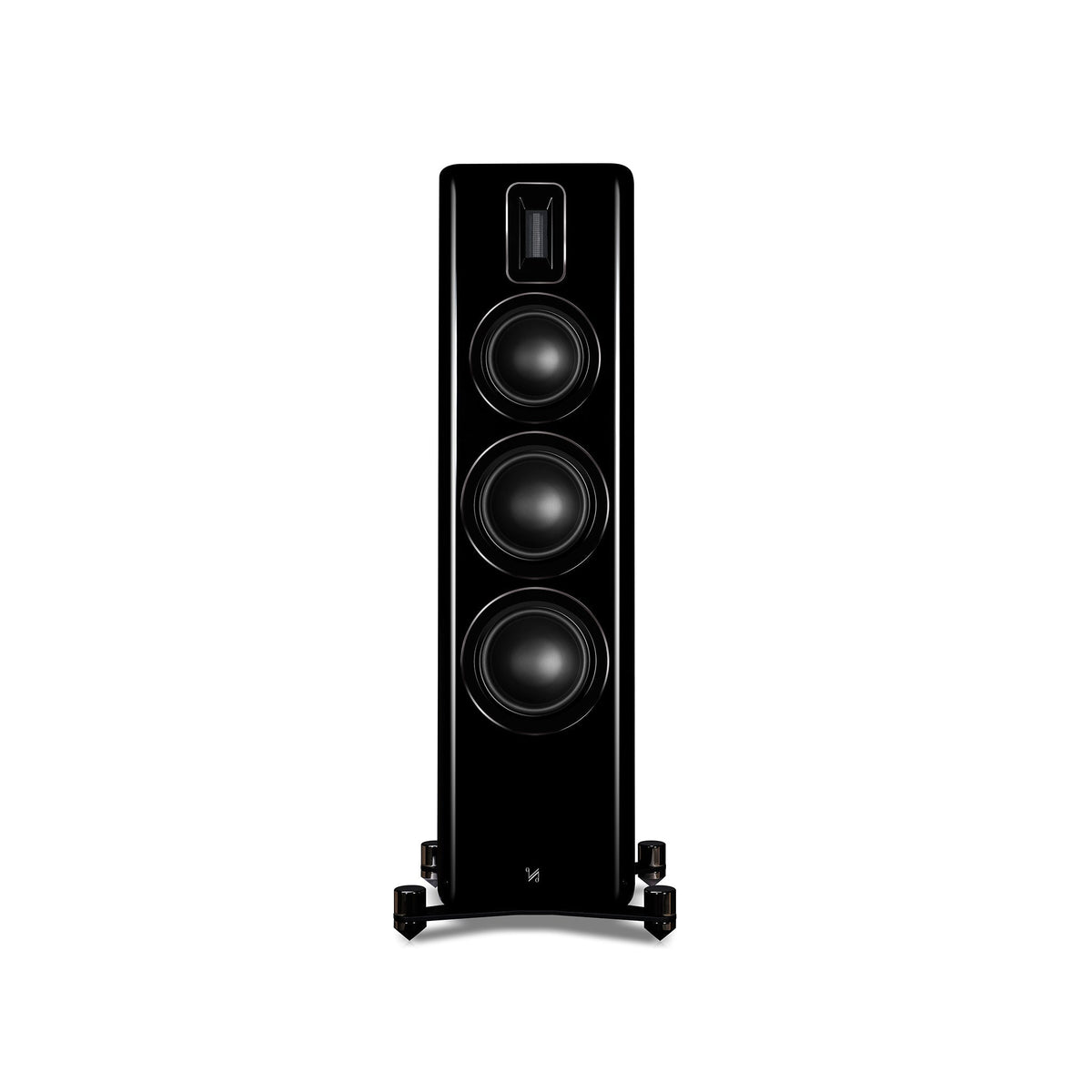

QUAD Revela 2 - Piano Black alternate three-quarter view

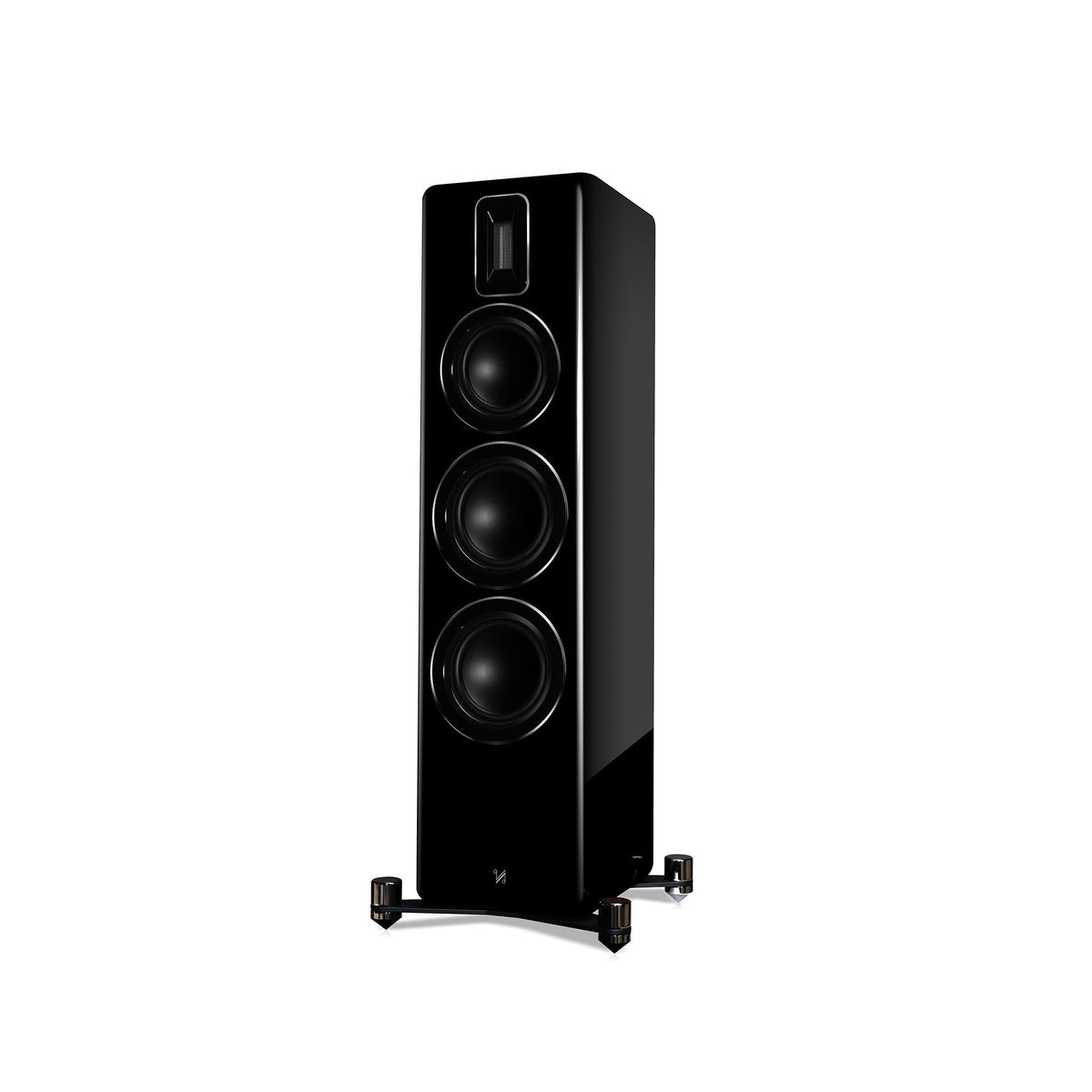

QUAD Revela 2 - Piano Black front view

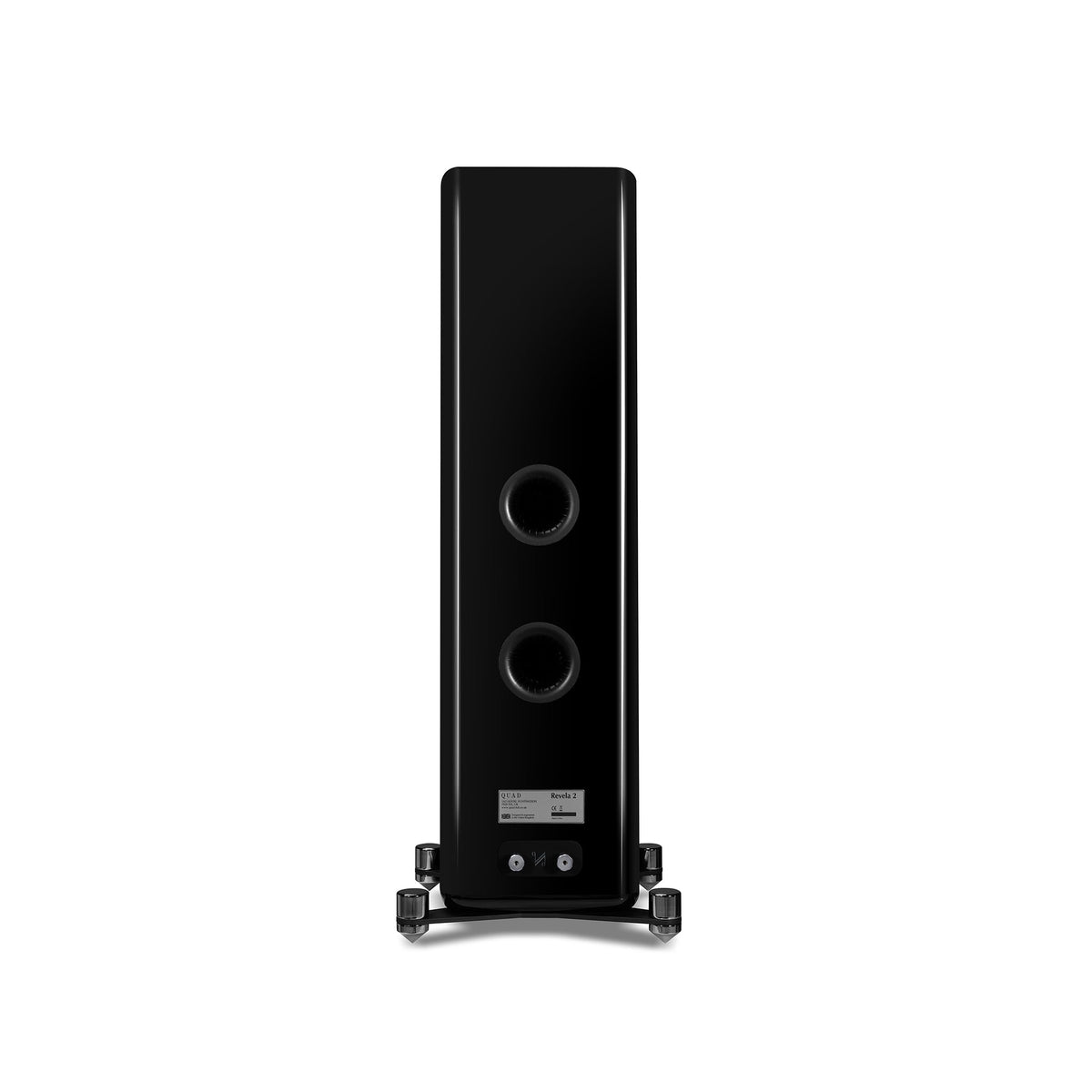

QUAD Revela 2 - Piano Black rear view
QUAD

QUAD Revela 2

Sale price$6,250.00 CAD

The QUAD Revela 2 is a three-way bass-reflex floorstanding loudspeaker using a 27 x 60 mm true-ribbon tweeter, a 150 mm advanced-fibre midrange driver and two 165 mm advanced-fibre bass drivers. A phase-compensated acoustic Butterworth crossover divides the operating range at 650 Hz and 3.8 kHz.

Its specified frequency response is 40 Hz to 24 kHz within plus or minus 3 dB, with bass extension to 35 Hz at -6 dB. Sensitivity is 89 dB, nominal impedance is 6 ohms and recommended amplifier power is 20 to 200 watts. The pair is offered in Piano Walnut or Piano Black.

Specifications
  • Type: 3-way bass-reflex floorstanding loudspeaker
  • Drivers: 27 x 60 mm true ribbon; 150 mm midrange; two 165 mm bass drivers
  • Frequency response: 40 Hz-24 kHz (+/-3 dB)
  • Bass extension: 35 Hz (-6 dB)
  • Sensitivity: 89 dB / 2.83 V / 1 m
  • Nominal impedance: 6 ohms
  • Recommended amplifier power: 20-200 W
  • Net weight: 31.8 kg per carton
  • Finish: Select Piano Walnut or Piano Black
  • Dimensions (W × H × D, including plinth): 350 × 965 × 325 mm
  • Minimum impedance: 3.9 ohms
  • Crossover frequencies: 650 Hz and 3.8 kHz
Finish:

QUAD products are only available for purchase in store. Get in touch for availability.

Contact us to purchase
