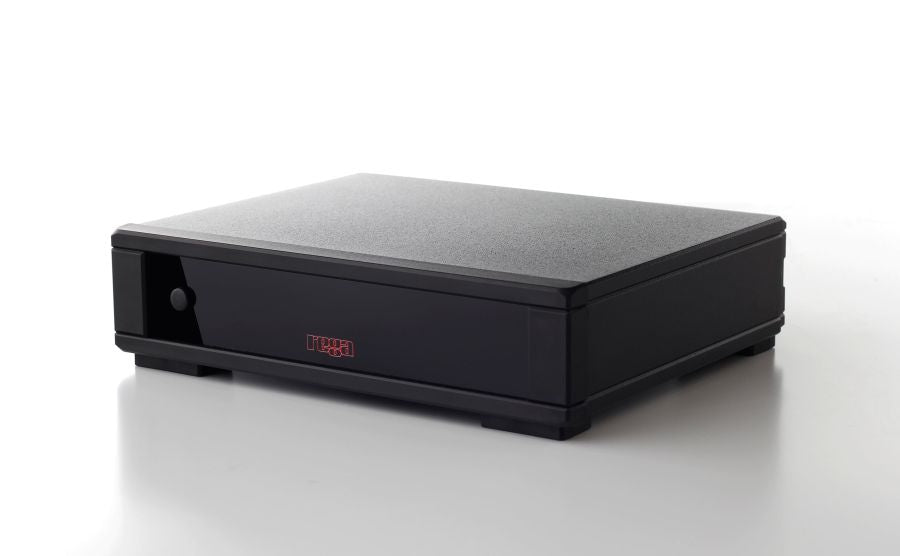

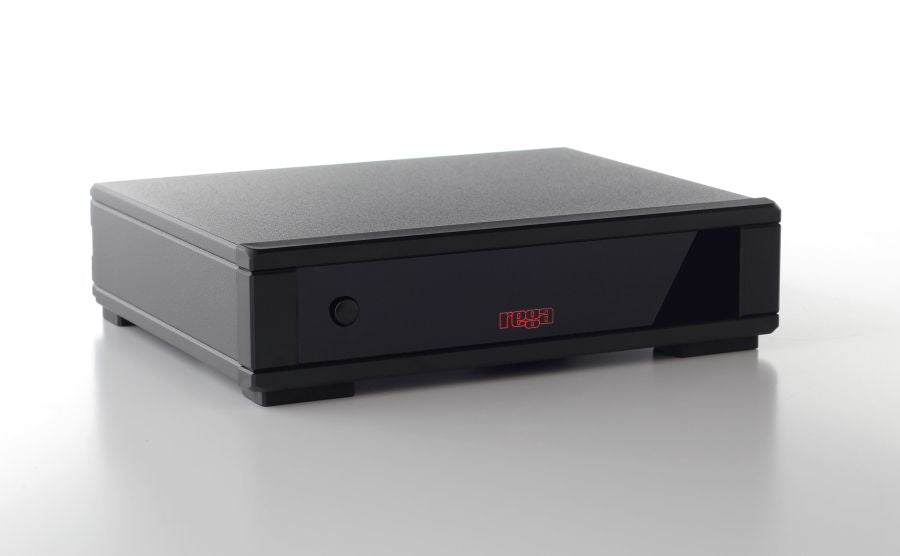

Rega Fono MM MK5 Phono Stage

$499.00 CAD

The Rega Fono MM MK5 is a dedicated phono preamplifier for moving-magnet cartridges. It provides 41.4 dB of gain at 1 kHz and presents the cartridge with a 47 kΩ and 100 pF input load before sending a line-level signal to an amplifier.

Its RIAA equalization is divided into two stages to reduce interaction between the equalization circuits. Polyester capacitors are used in the signal path and polypropylene capacitors in the RIAA sections, all housed in an aluminium case and powered by Rega’s external PS1 supply.

Availability: Stock and supplier availability vary. Please contact us before ordering to confirm current availability and timing.

Specifications

Cartridge type: Moving magnet
Input loading: 47 kΩ / 100 pF
Input sensitivity: 1.7 mV for 200 mV output
Maximum input: 60 mV at 1 kHz
Gain: 41.4 dB at 1 kHz
Output impedance: 200 Ω
Recommended minimum output load: 5 kΩ
Frequency response: 15 Hz (−3 dB) to 100 kHz (−0.2 dB), with 50 kΩ output load
RIAA accuracy: Better than ±0.2 dB, 100 Hz–100 kHz, with 50 kΩ output load
Power requirement: 24 V AC, 80 mA maximum
