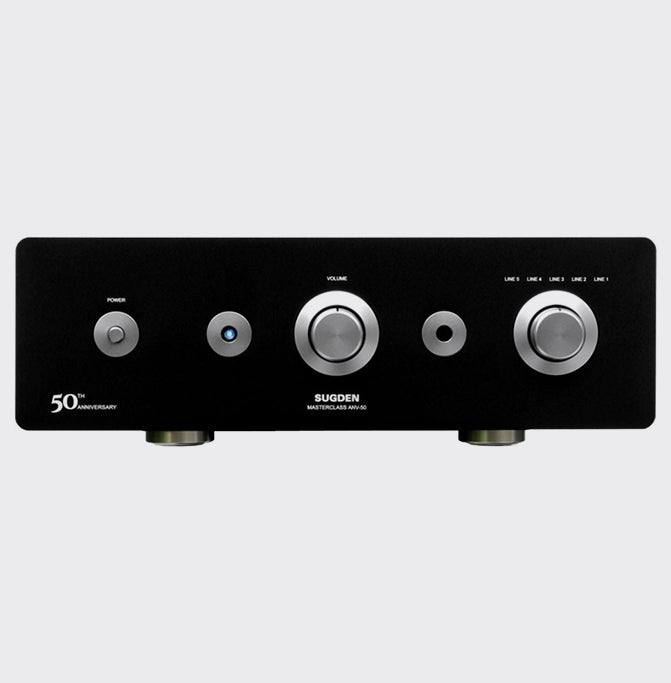

Sugden Masterclass ANV-50 Integrated Amplifier

$8,175.00 CAD

The Sugden Masterclass ANV-50 is a 50-watt integrated amplifier built around a pure Class A input amplifier and a Sugden error-correction output stage. Its power section delivers 50 watts per channel into 8 ohms and 100 watts per channel into 4 ohms.

Five relay-switched line inputs, a variable preamplifier output, tape output and remote volume control support a straightforward two-channel system. The amplifier uses a fast switching supply and enters a low-consumption state when no input signal is present.

Custom finishes: Titanium and Graphite are the standard finishes. Custom colours are available by special order at additional cost. Please contact us to discuss available colours, pricing and lead time.

Specifications

Power output: 50 W per channel into 8 ohms
Power output into 4 ohms: 100 W per channel
Frequency response: 12 Hz-45 kHz (±1 dB)
Bandwidth: 8 Hz-86 kHz
Distortion: Not stated in the manufacturer’s product specification table
Signal-to-noise ratio: Greater than 85 dB
Type: Integrated amplifier with pure Class A input stage and error-correction output
Inputs: Five relay-switched line level
Outputs: Variable pre-out; tape out; one stereo loudspeaker pair
Volume control: Remote; RC5 handset included
Line input sensitivity: 110 mV for full output
Idle consumption without input signal: 20 W
Dimensions (H x W x D): 143 x 430 x 370 mm
Gross packed weight: 11 kg

Finish:

Titanium Graphite

Variant

Special order — contact us for lead time
