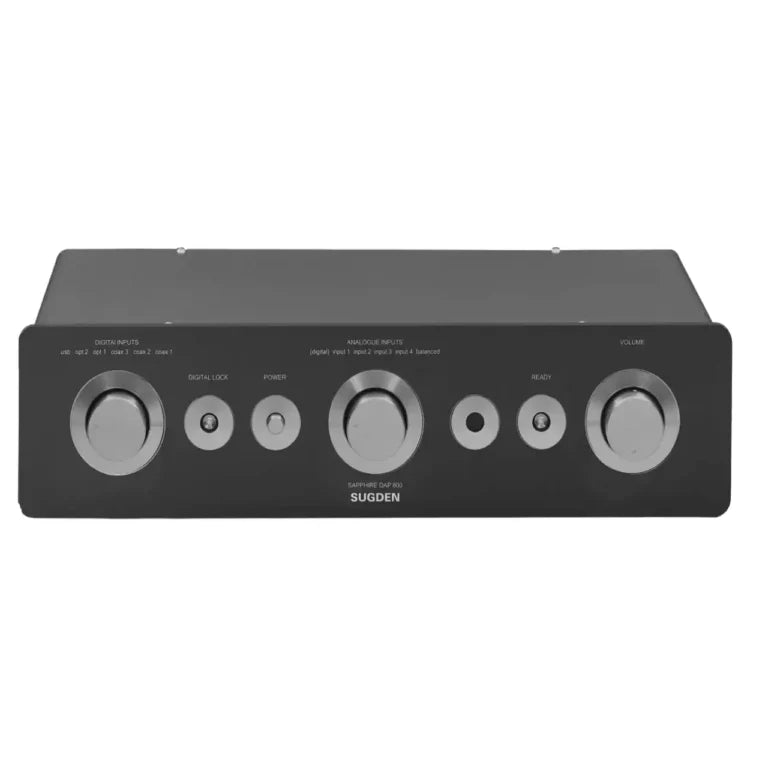

Sugden Sapphire DAP-800 Digital Analogue Preamplifier

$8,735.00 CAD

The Sugden Sapphire DAP-800 combines an analogue preamplifier and a non-oversampling digital-to-analogue converter in one chassis. Independent power supplies serve the analogue and digital sections, while the analogue stage uses Sugden's VCV circuit and a Class A output stage.

Analogue connectivity includes four line inputs, balanced input and bypass. Three coaxial, two optical and one USB-B digital input feed the DAC, with two single-ended and one balanced output available.

Custom finishes: Titanium and Graphite are the standard finishes. Custom colours are available by special order at additional cost. Please contact us to discuss available colours, pricing and lead time.

Specifications

Type: Digital-to-analogue converter and analogue preamplifier
Analogue inputs: Four line level; one balanced; one bypass
Digital inputs: Three coaxial S/PDIF; two optical S/PDIF; one USB-B
Digital support: Up to 24-bit/96 kHz by S/PDIF; USB up to 16-bit/44.1 kHz
Outputs: Two single-ended; one balanced; one tape
Volume control: Motorized analogue; RC5 compatible
Power switching: Separate analogue and digital sections
Input sensitivity: 120 mV for 1 V output
Maximum output: 9 V
Frequency response: 15 Hz-98 kHz (0 dB)
Bandwidth: 8 Hz-125 kHz
Signal-to-noise ratio: Greater than 85 dB
Dimensions (W × H × D): 430 × 120 × 340 mm
Gross packed weight: 10 kg

Finish:

Titanium Graphite

Variant

Special order — contact us for lead time
