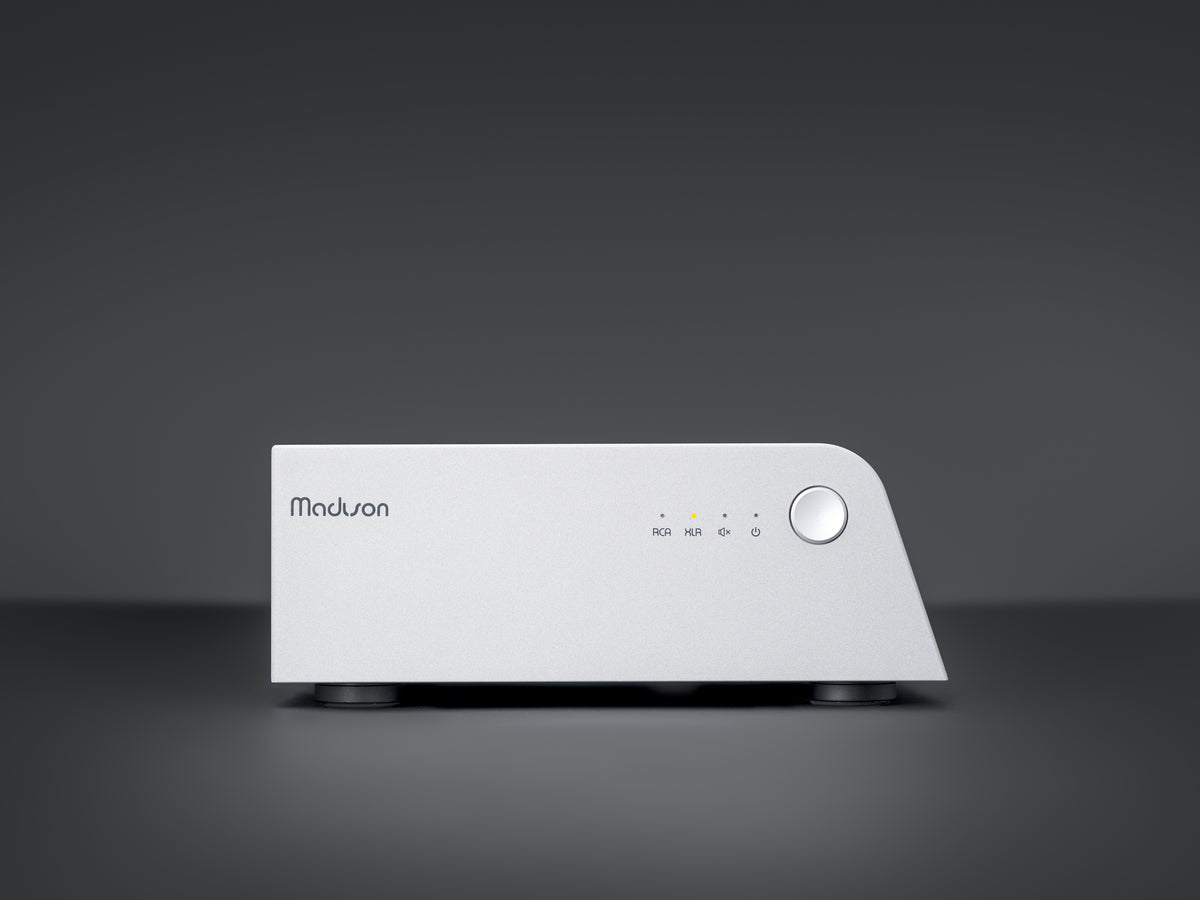

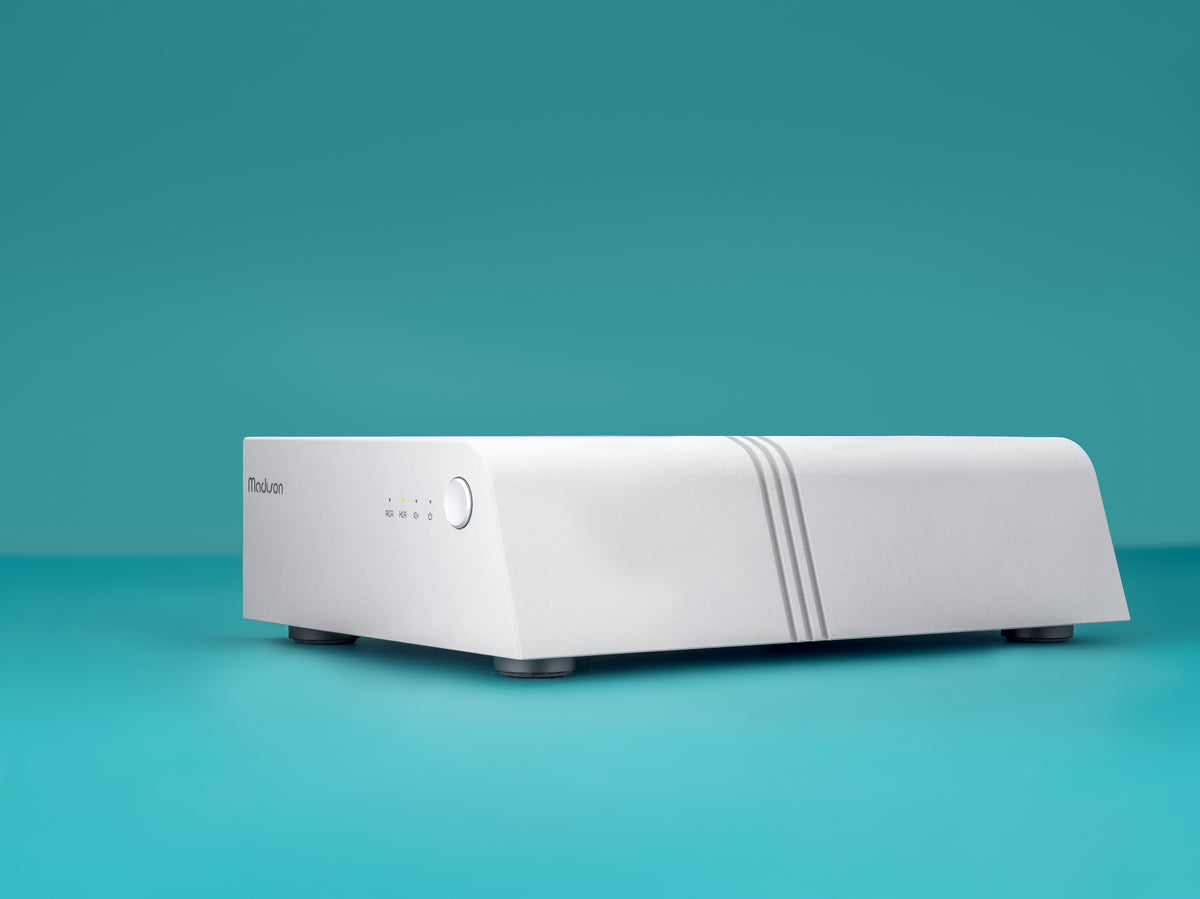

Wattson Audio Madison Amplifier

Name: Wattson Audio Madison Amplifier
Brand: Wattson Audio
Price: 9995.00 CAD
Availability: InStock

$9,995.00 CAD

The Wattson Audio Madison Amplifier combines a fully symmetrical, discrete Class A/B circuit with a compact aluminium chassis. It delivers 50 watts per channel into 8 ohms, 75 watts into 4 ohms and 100 watts into 2 ohms, with balanced XLR and single-ended RCA inputs.

Stereo, mono and bi-amp modes let the amplifier adapt as your system changes. Switchable gain and loudspeaker-impedance settings provide further flexibility, while a regulated and filtered external 36-volt power supply supports the amplification stage.

Specifications

Power stereo/bi-amp: 2 x 50 W at 8 ohms; 2 x 75 W at 4 ohms; 2 x 100 W at 2 ohms
Power mono: 1 x 50 W at 8 ohms; 1 x 100 W at 4 ohms; 1 x 150 W at 2 ohms
Analogue bandwidth: 1 Hz–400 kHz (−3 dB)
THD+N: <0.05%; measurement conditions not specified in the manufacturer’s product table
Signal-to-noise ratio: Greater than 120 dB A-weighted
Type: 2-channel power amplifier
Circuit: Low-feedback Class A/B; fully symmetrical discrete amplification
Modes: Stereo, mono and bi-amp
Inputs: Balanced XLR and single-ended RCA
Input impedance: 100 kohms
Gain: 20 dB or 26 dB selectable
External supply: 36 V DC, 350 W universal input
Dimensions (W x D x H): 216 x 300 x 87 mm
Weight: 6.0 kg
