Wharfedale ELYSIAN CR Centre Channel

Sale price$7,499.00 CAD

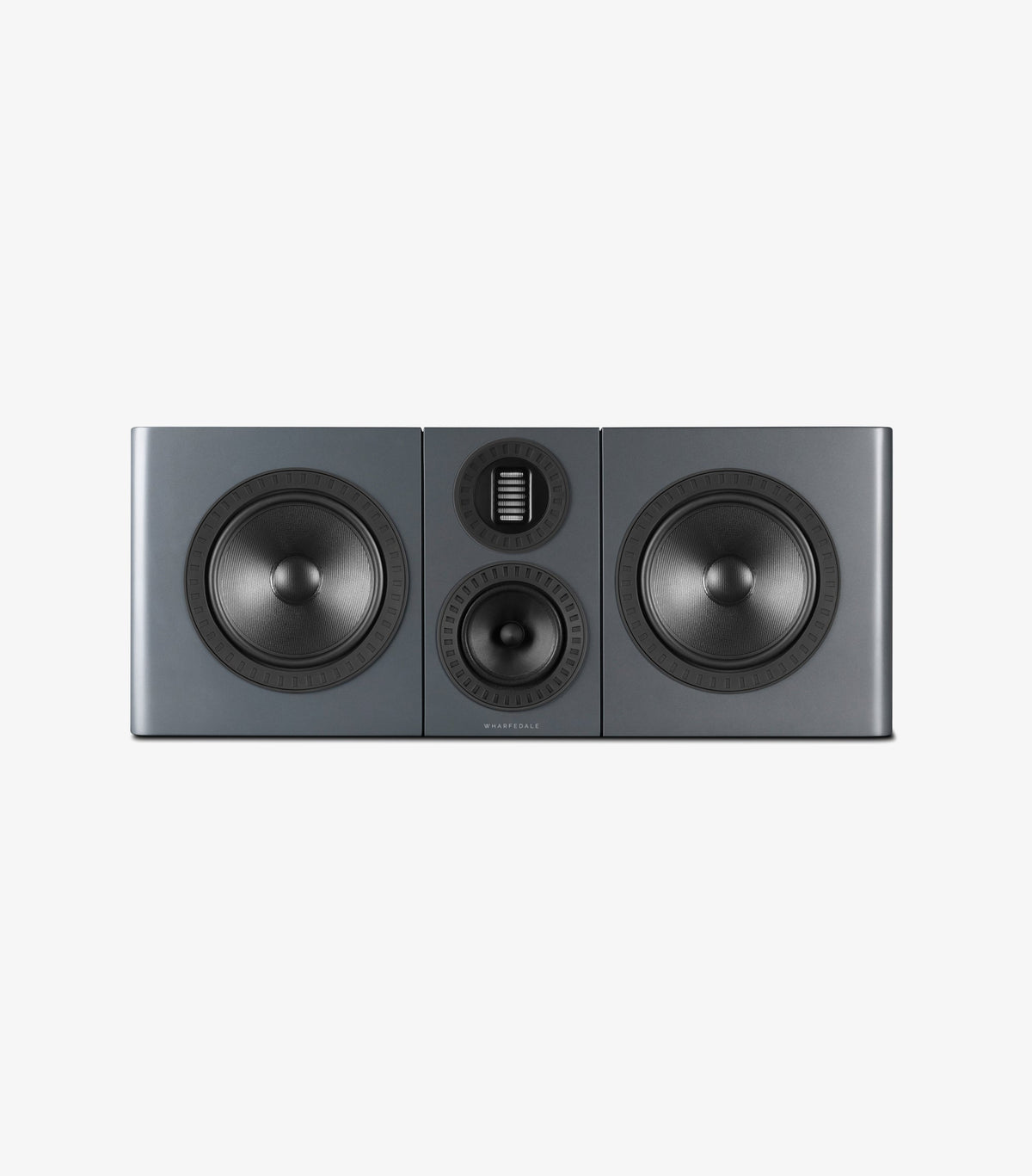

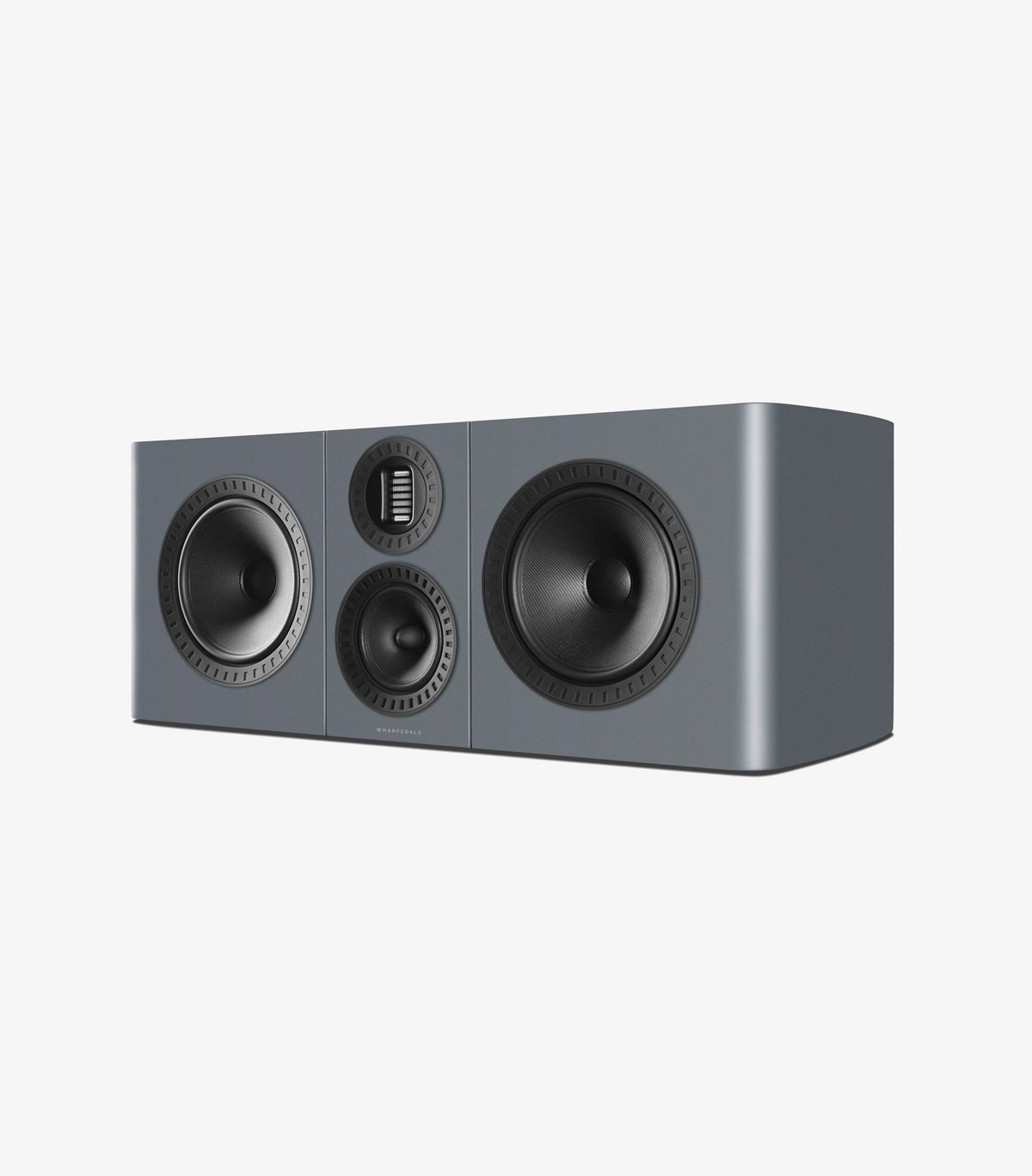

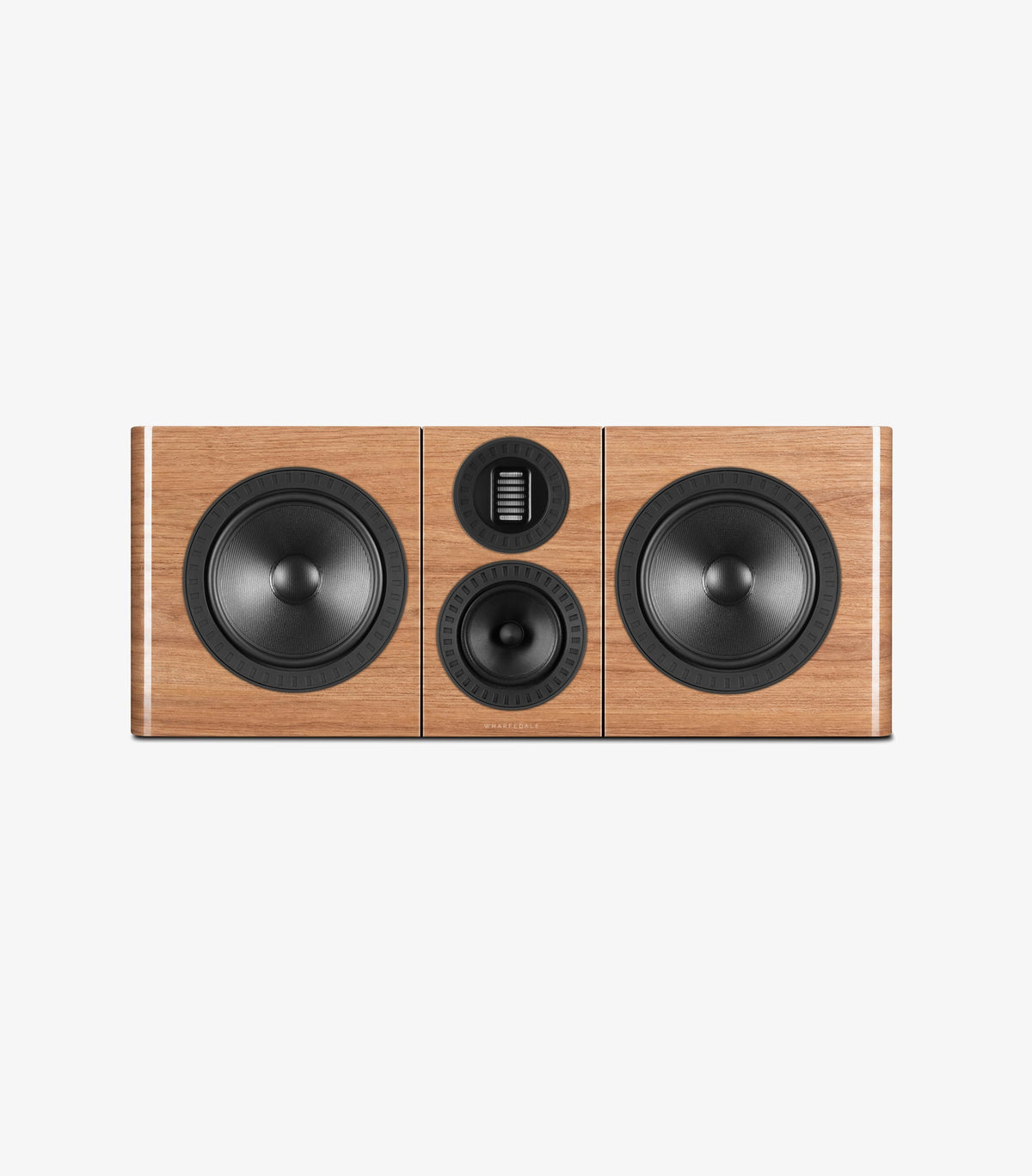

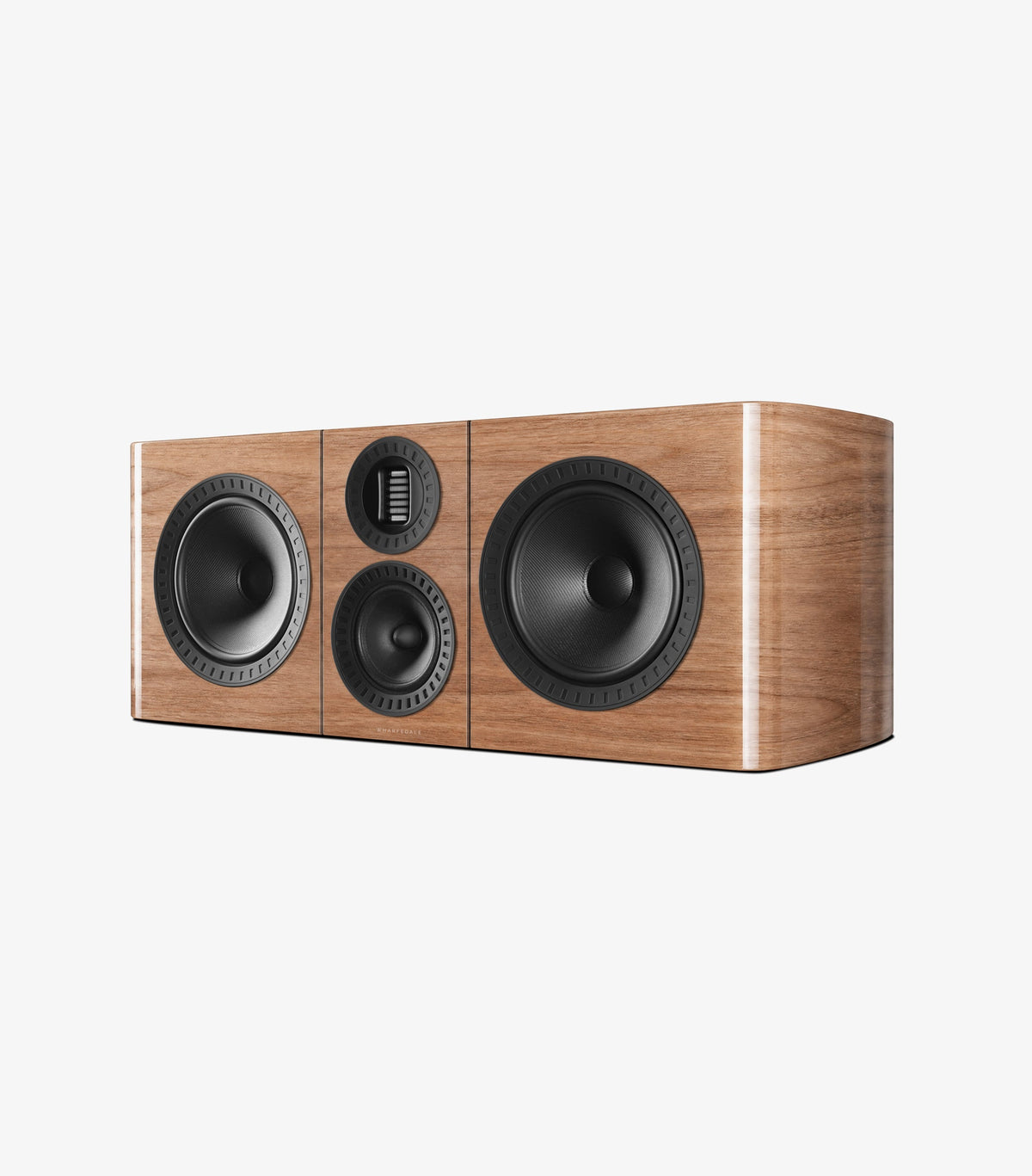

The Wharfedale ELYSIAN CR is a large three-way centre-channel speaker for an ELYSIAN R multichannel system. Two 220 mm coated-glass-fibre woofers, a dedicated 150 mm midrange and a 27 × 45 mm Air Motion Transformer divide bass, voices and treble between separate drivers.

Its AMT uses a folded diaphragm rather than a conventional dome tweeter. A separate midrange driver divides the vocal range from the bass drivers. Specified frequency response is 35Hz - 22kHz (±3 dB). Choose Speaker Only or With Stand on this page. Available finishes are Black, Grey, Light Walnut.

Specifications
  • Selling unit: Single speaker
  • Available finishes: Black, Grey, Light Walnut
  • Configurations: Speaker Only; With Stand
  • General Description: 3-way centre speaker
  • Enclosure Type: Bass reflex
  • Transducer Complement: 3-way
  • Low Frequency: 8.5" (220mm) coated glass fibre matrix cone x2
  • Midrange Driver: 6" (150mm) coated glass fibre matrix cone
  • High Frequency Driver: 27 x 45mm AMT
  • Sensitivity (2.83V @ 1m): 91dB
  • Recommended Amplifier Power: 25-250W
  • Nominal Impedance: 6Ω (compatible 8Ω)
  • Minimum Impedance: 3.5Ω
  • Frequency Response (+/-3dB): 35Hz - 22kHz
  • Bass Extension (-6dB): 27Hz
  • Crossover Frequency: 360Hz, 2.9kHz
  • Net Weight: 30.2 kg per speaker
  • Gross Weight: 35.0 kg per carton
  • Dimensions (W × H × D): 830 × 320 × 370 mm; height includes plinth, depth includes terminals
